Operating Voltage
2.8~3.6V
Operating Current
400μA
OTP
--
SRAM
--
ADC ENOB
--

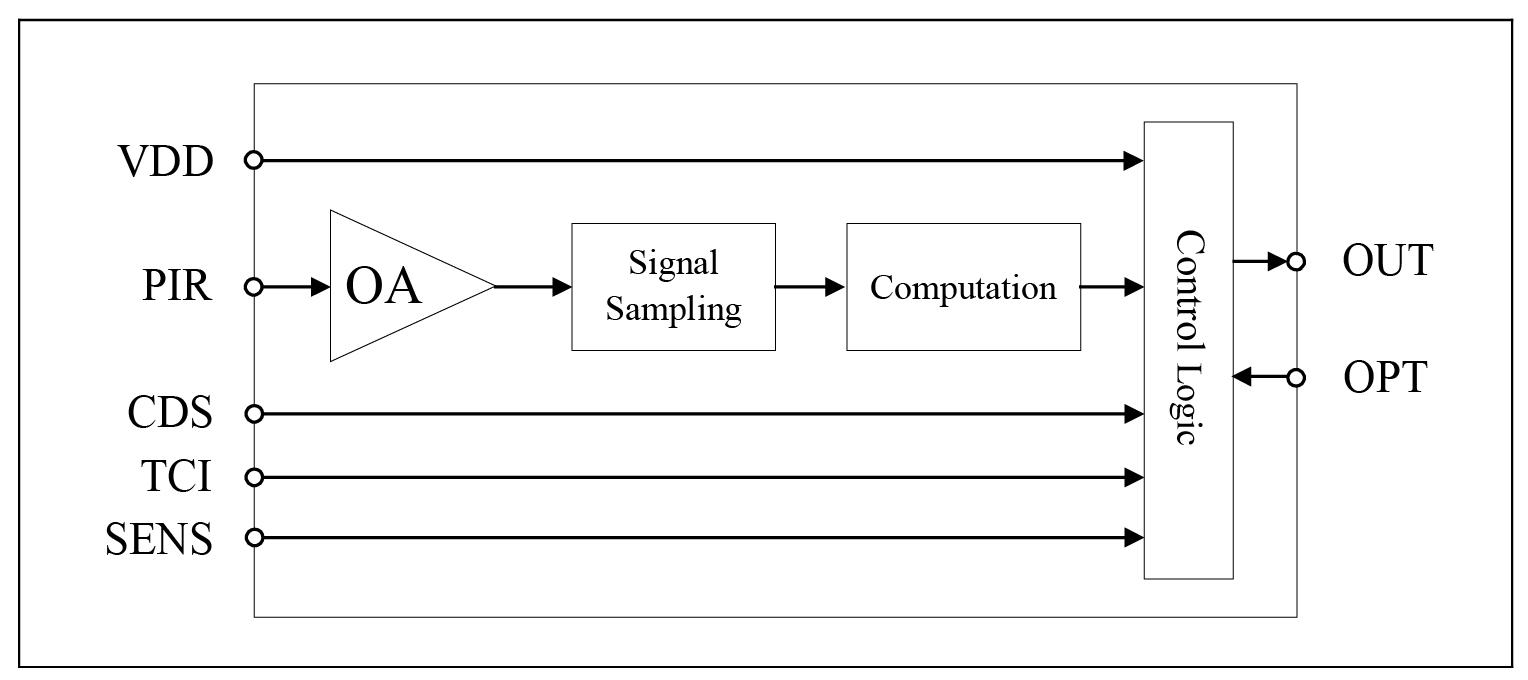

SD4101R is an integrated PIR (Passive Infra-Red) controller IC with very low power consumption. Its internal analog and digital mixed signal design architecture results in very stable operation under various environment conditions.
SD4101R employs PIR human pyroelectric infrared detection technology. It has built-in high-precision algorithm that is adaptable to current environment, filters out ambient interference, and effectively extracts human signals. The sensing range is more than ten meters. Application circuits are simple, and do not need tuning during development or production, thus saving product space and manufacturing cost.
Industry standard, good stability, strong anti-interference, wide working temperature range
Built-in amplifier works with different PIR sensors to perform signal processing
Built-in amplifier peripheral circuit to reduce external adjustment, save development time and production cost
Built-in high-precision algorithm unit, adaptive to ambient environment, effectively distinguish human signals from interference
Long sensing range. Probability of malfunction is much lower than traditional control circuits
Adjustable sensitivity for convenient usage
Adjustable output pulse width with high accuracy and wide range
Built-in 1.5s masking time, effectively inhibits repetitive malfunction
Connect external photo-transistor or photo-resistor to inhibit day light working
Re-triggerable during active output signal
15s power up stability time
Simple application circuit results in small product space, high consistency, and low repair rate in volume production.
Fast test mode during production to enhance manufacturing throughput
