Operating Voltage
2.4~3.6V
ADC Sampling Rate
512kHz
ADC ENOB
19.3bits@8sps
Gain = 128
Gain = 128
Peripherals
DAC
Package
MSOP10

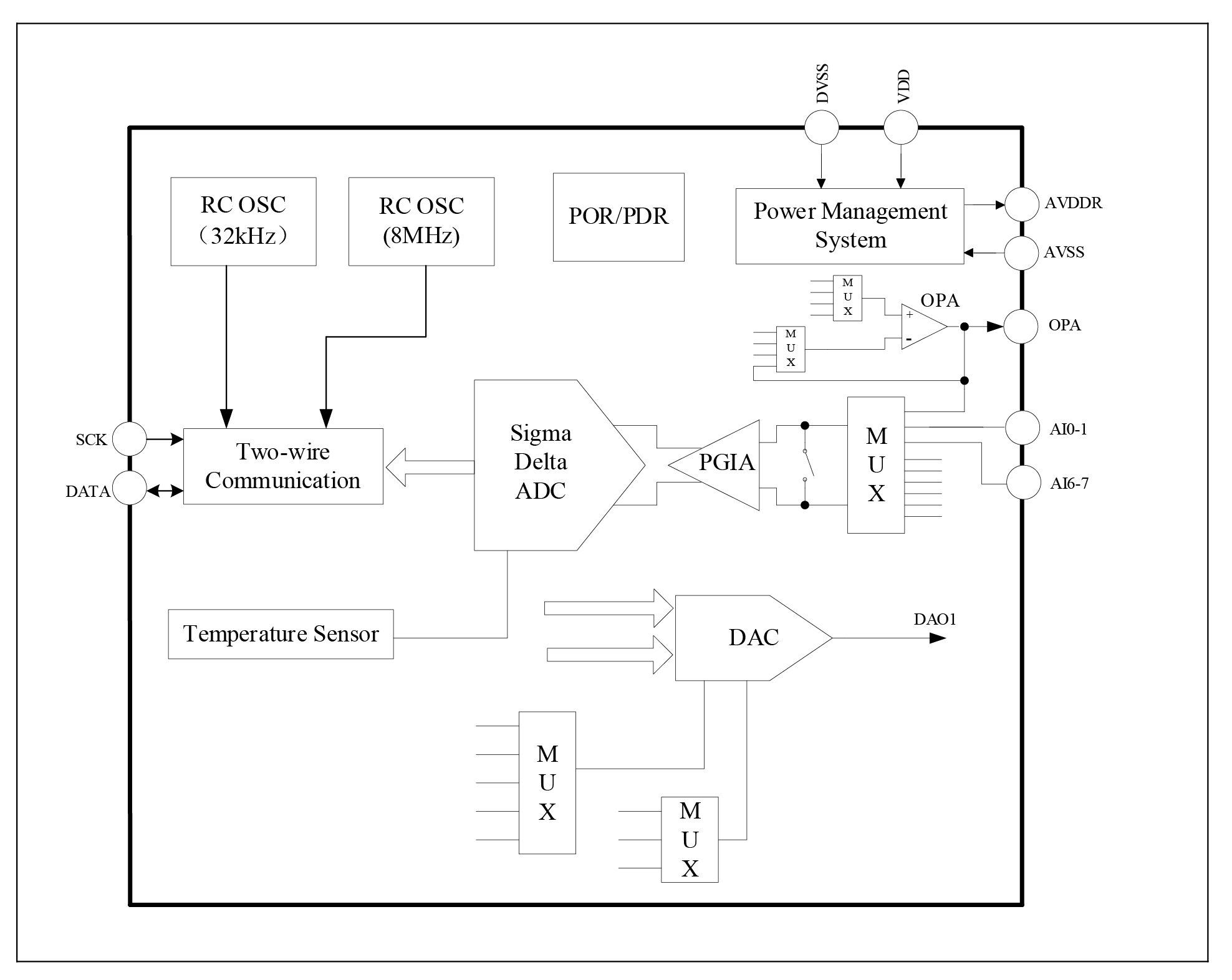

The SD6500 has built-in 24 bits ADC and two-wire communication circuits.
A host computer can read and edit all the registers in the IC through the two-wire communication circuit.
The IC supports the timed measurement comparison mode. After entering this mode, the IC will turn on the host after successful data comparison. The host can also independently turn on the IC.
The IC has built-in temperature sensor, and 8 bits DAC to meet the requirements of various applications.
High precision ADC, 19.3bits ENOB at 8sps. It can be set to 2 differential or 4 single-ended inputs
Low noise, high input impedance preamplifier with selectable gain options:1, 4, 8, 16, 32, 64, 128, or 256
Internal 8MHz and 32kHz RC oscillator
Two-wire communication interface, maximum speed at 1.1MHz
Built-in 8 bits DAC, supports one output
Built-in temperature sensor, support single point calibration
Hardware timing comparison measurement function
Built-in sensor excitation output, output voltage options: 2.4V, 2.7V, 3.0V and 3.3V
Low voltage detection and power on reset circuit
Operating voltage range: 2.4~3.6V
Operating temperature range: -40~85℃
