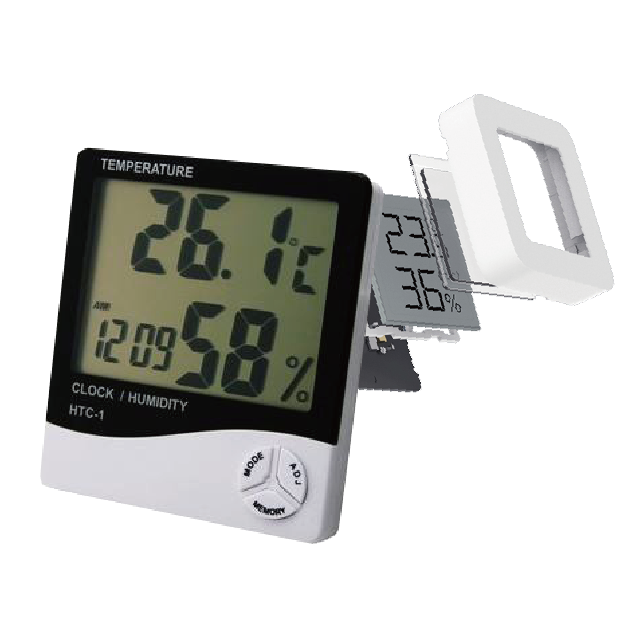

Digital Thermometer
High precision IC with temperature sensor integrated can accurately measure temperature. It can be used in industrial environment or home.
Program overview
In recent years, the demand for temperature measurement has increased. The SD5000 series is designed as a digital thermometer solution. The integrated temperature sensor can directly convert the temperature into a serial digital signal while measuring the temperature. Temperature displays on the LCD or LED after the IC processes the signal. The thermometer has a strong anti-interference ability, high temperature measurement accuracy, convenient reading, no calibration, convenient debugging, and easy development. It can be used in industrial and household environments.
Program advantages
High temperature measurement accuracy and low power consumption
Digital temperature output, compatible with I2C/SMBus
Pin compatible with ADT75/LM75A/TMP75
High temperature measurement accuracy and low power consumption
Digital temperature output, compatible with I2C/SMBus
Pin compatible with ADT75/LM75A/TMP75
Features
Digital temperature sensor
12 bits digital temperature reading with 0.0625℃ resolution
±0.5℃ typical error at -40~+100℃ range
±1℃ typical error at -55~+125℃ range
Programmable over temperature alarm threshold
Continuous or single measurement options
Low power consumption: 170uA typical during measurement, less than 1uA in shutdown mode
Operating voltage range: 2.7 - 5.5V

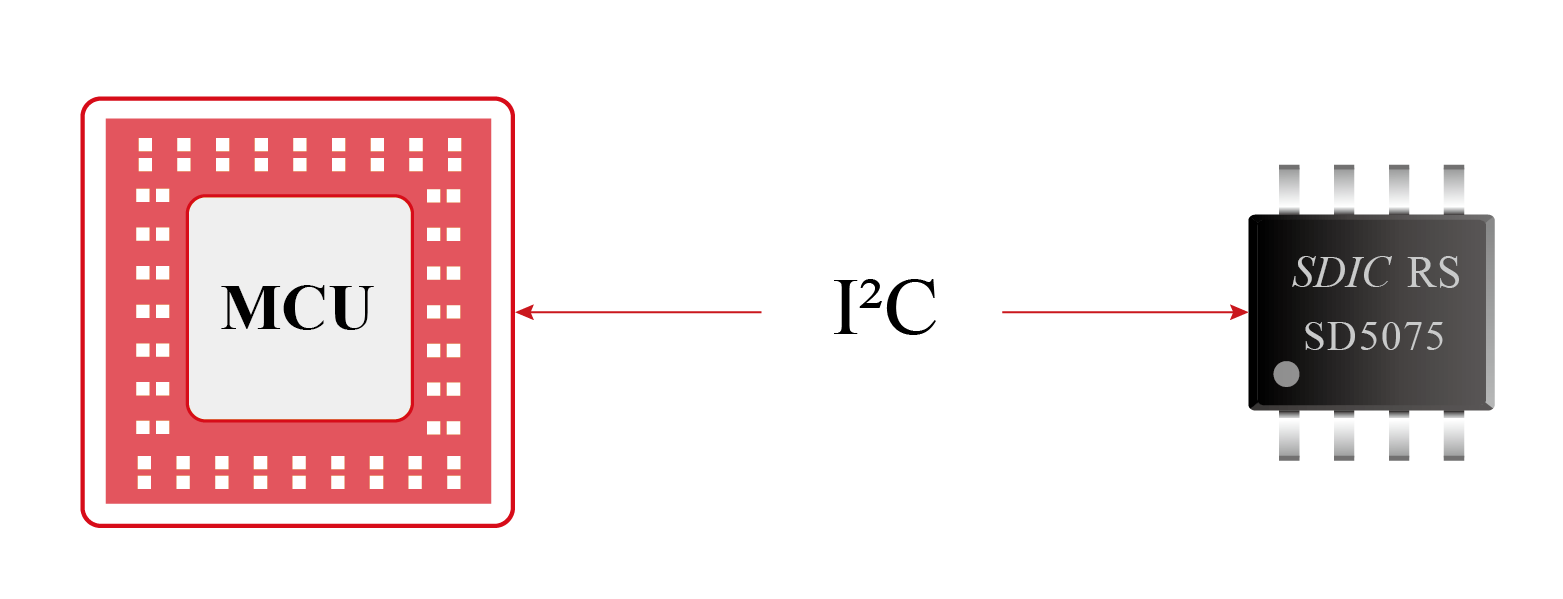

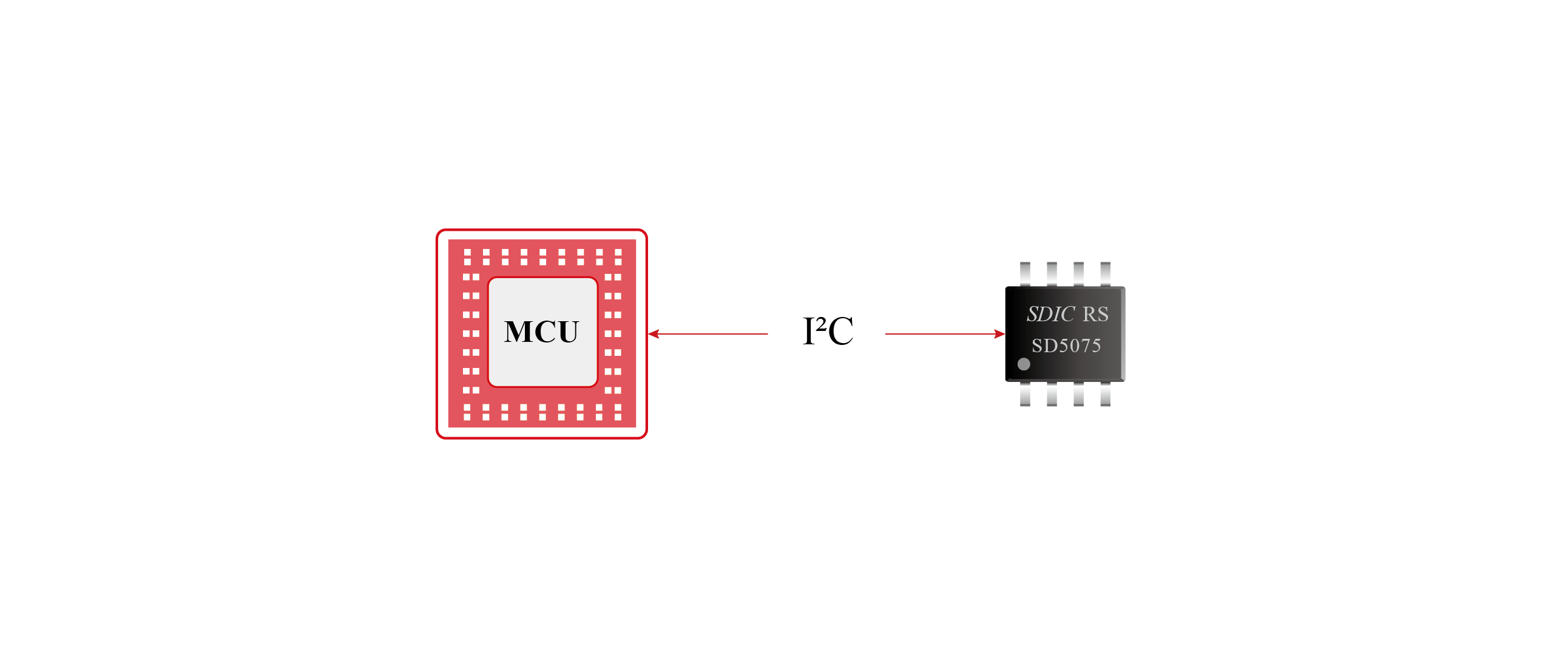

Application diagram
