Operating Voltage
2.7~5.5V
Temperature Measurement Range
-55~+125℃
Typical Error @3.0V
±0.5℃@-40~+100℃
±1.0℃@-55~+125℃
±1.0℃@-55~+125℃
Compatible
ADT75, LM75A, TMP75
Package
SOP8

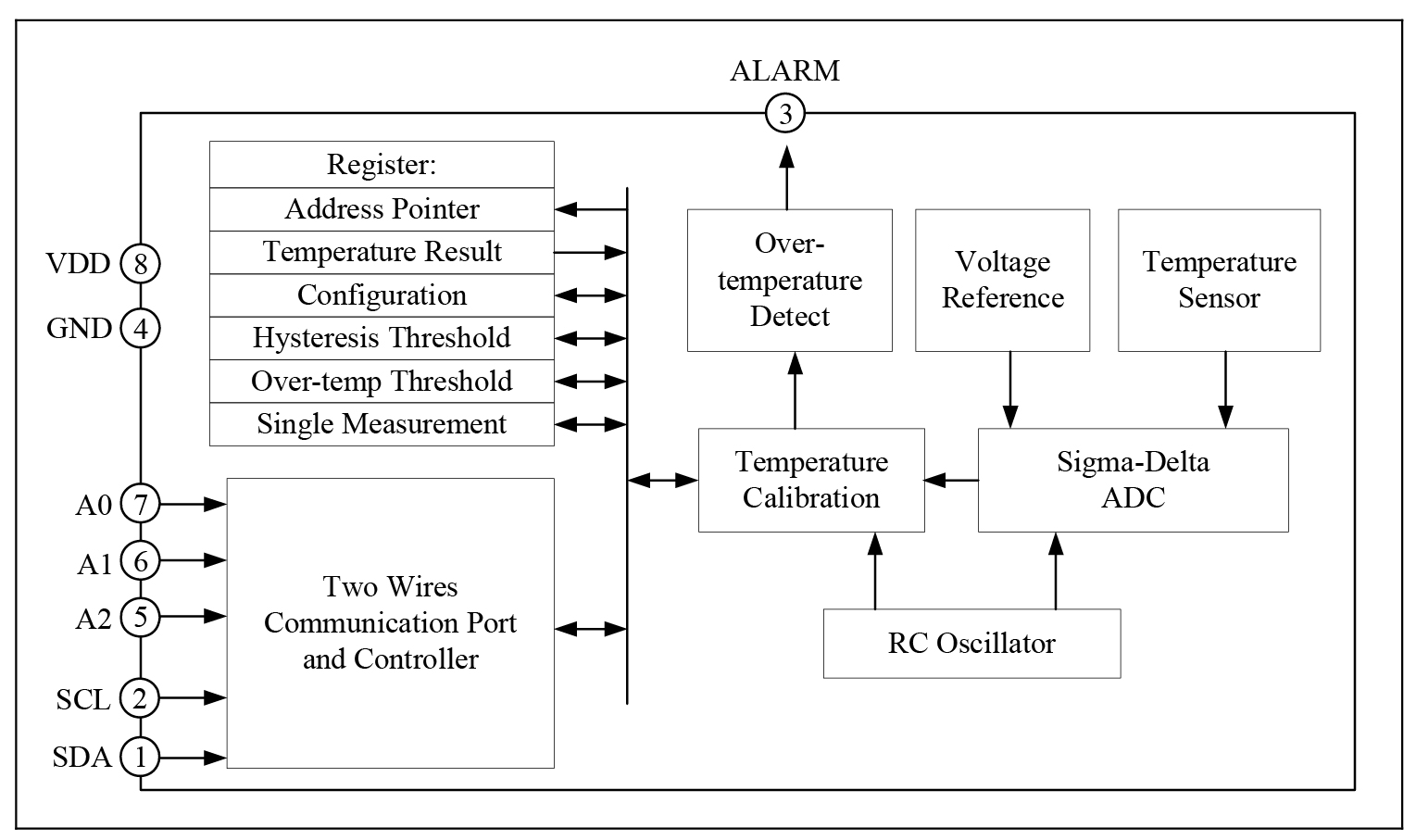

SD5075 is a highly accurate temperature measurement IC with built-in high resolution ADC. The typical error is ± 0.5℃ for the -40~+100℃ range, and ±1.0℃ for the -55~ +125℃ range. It supports two wires I2C/SMBus interface. Up to eight chips can share the communication interface in parallel by setting the address A2~A0.
12 bits digital temperature readout, 0.0625℃ resolution
±0.8℃ maximum error at -40~+100℃ range
±1.5℃ maximum error at -55~+125℃ range
Two wires communication interface, compatible with I2C/SMBus protocol
Over-temperature alarm function, user settable alarm threshold and hysteresis
Continuous or single measurement options
Low power consumption: 170μA typical during measurement, less than 1μA at shutdown mode
2.7~5.5V power supply range
Pin compatible with ADT75/LM75A/TMP75
Intelligence Agriculture
Industrial Temperature Measurement
Water Temperature Sensor
