Operating Voltage
2.7~5.5V
Temperature Measurement Range
-55~+125℃
Typical Error @3.0V
±0.8℃@-10~+85℃
±1.5℃@-55~+125℃
±1.5℃@-55~+125℃
Compatible
DS18B20
Package
TO-92

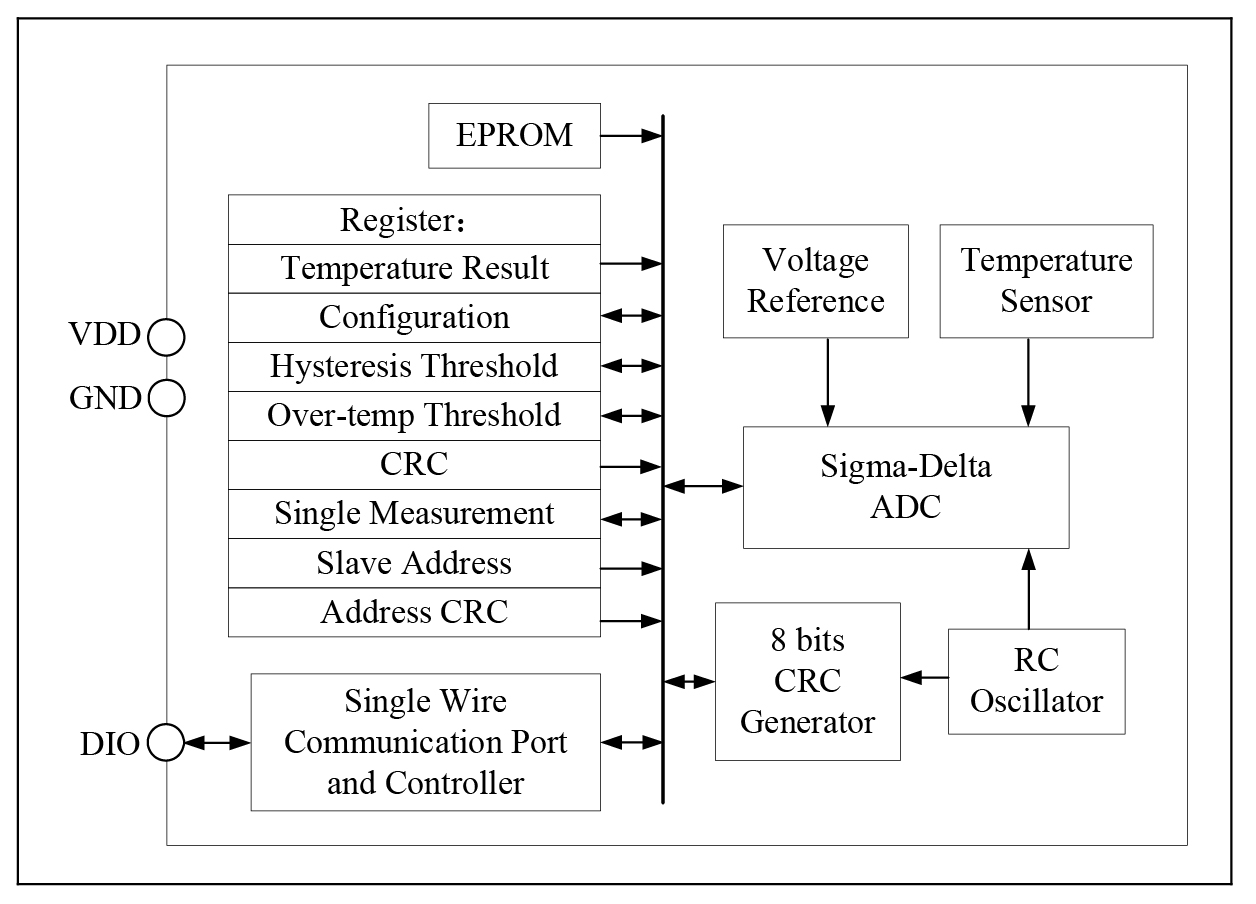

SD5020 is a highly accurate temperature measurement IC. It supports single wire bus communication and outputs 12 bits temperature readings. The typical error is ±0.5℃ for the -10~+85℃ range, and ±0.8℃ for the -55~+125℃ range. Over-temperature alarm thresholds and hysteresis can be set through internal register.
Each chip has a unique 40 bits address useful for multi-slave communication system.
12 bits temperature reading with 0.0625℃resolution
±0.8℃ maximum error at -10~+85℃ range
±1.5℃ maximum error at -55~+125℃ range
Single wire communication with CRC function
programmable 40 bits slave address
Programmable over-temperature alarm threshold and hysteresis
2.7~5.5V power supply range
Pin compatible with DS18B20

Intelligence Agriculture

Industrial Temperature Measurement

Water Temperature Sensor
